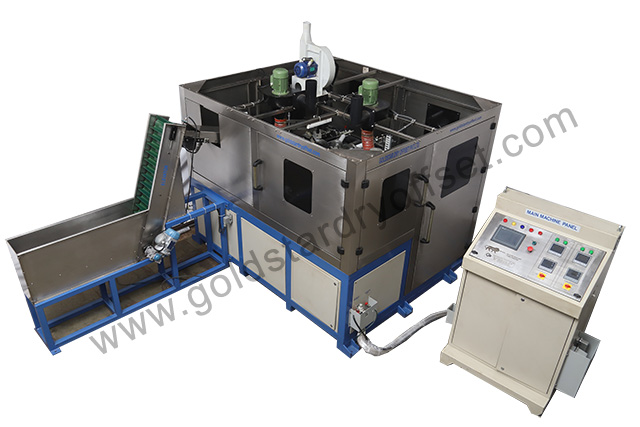

Rotary Tube Printer
Rotary Tube Printer Specifications
| Unit | Value |
|---|---|
| Min. & Max. Dia. | 30mm x 60mm |
| Min. & Max. Height | 80mm x 220mm |
| Max Print Area | 190mm (L) x 210mm (W) |
| Mode of Feeding | Automatic with Hopper |
| Machine Speed | 60-75 cycles/minute |
| Number of colors | 4/6/8 |
| Max. Impression | 3500 / 4500 tubes per hour |
| Total power compsumption | 14 Kilowatts |
Rotary Tube Printer Machine Features
Features
- Auto mechanical loading & unloading of tube on exit conveyor.
- Flame treatment with auto ignition.
- Instantaneous UV drying.
- 4 Blanket printing with precise registration.
- Online UV varnish unit for overcoat.
- Individual & independent UV control system for printing & varnish.
- Individual & independent AC motor with variable AC frequency inverter for variable speed for printing machine & varnish unit.
- Easy to switch over varnish unit if not indeed.
- Micrometer lateral and radial plate cylinder adjustment.
- Anti-backlash plate cylinder gear.
- Positive timing through out machine.
Optional Features
- Zeromax Drive for auto ink control.
- Magnetic Cylinder from USA
- Corona System.
- Offline Registration.
- PLC Based Ink Transfer System.
- Maintenance Free Ink Distribution System.
- Multi Speed Gearbox with Neutral Position.
REQUEST TECHNICAL QUOTATION
Complete the form below to receive detailed technical documentation and a customized quote for the Rotary Tube Printer.
Product Samples
