GD 135

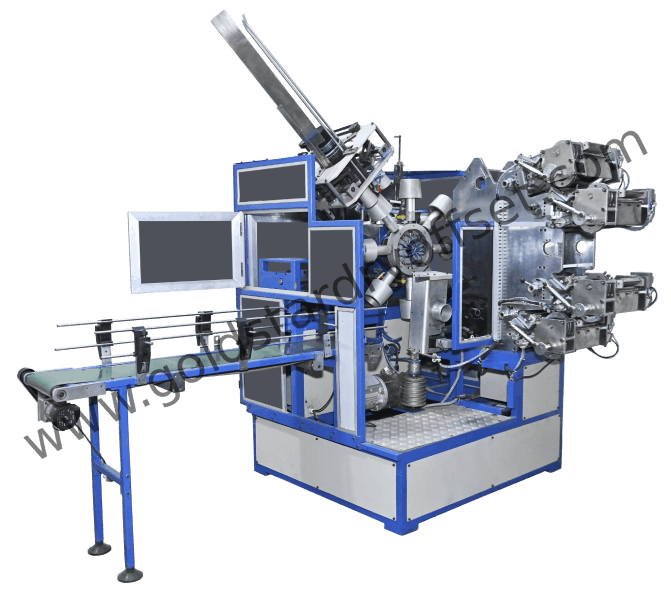

GD 135 Printer Machine
Four / Six Color UV Offset Pail Printing Machine (GD 135) guarantees high printing accuracy with features such as automatic loading, flame treatment, pre registration, auto unloading, etc. This Pail Printer includes centralized lubrication system, Micrometer lateral and radial plate cylinder adjustment. Complete vacuum system with pump that holds container on mandrels at neccessary position adds one of the important feature to our pail printing machine. This pail printer can printing about 800 impression per hour with a suitablity to print from 1 litre pail to 20 litres of pail.
GD 135 Printer Specifications
| Unit | Value |
|---|---|
| Min. & Max Dia. | 80mm x 140mm |
| Min. & Max. Height | 80mm x 160mm |
| Max Print Area | 425mm (L) x 150mm (H) |
| Electric Motor Drive | Ac Gear motor 3 HP, 3 Phase, 50Hzs. with inverter for fine speed control |
| Pneumatic Pressure | @8-10 kg/cm2 |
| Air Consumption | @12m3/hr |
| Total Power Consumption | 8 kilowatts |
| Max. Impression | @ 3000/hr (1 Ltr Bucket) |
| Total Machine Weight | 3500 kgs |
GD 135 Printer Machine Features
Features
- Auto Loading.
- Flame treatment with auto ignition.
- Instantaneous UV drying.
- Auto Ejection with exit conveyor.
- Lower ink consumption.
- Less Floor space.
- AC Motor with AC frequency inverter for variable speed, acceleration and deceleration control.
- Anti-backlash plate cylinder gear.

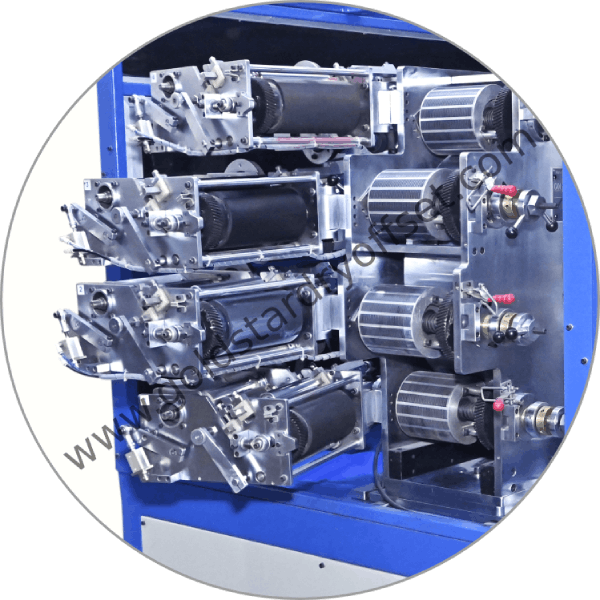

- Micrometer lateral and radial plate cylinder adjustment.
- Complete vacuum system with pump that holds container on mandrels at neccessary position.
- Positive timing through out machine.
Optional
- Zeromax Drive for auto ink control.
- Magnetic Cylinder from USA
- Corona System.
- Offline Registration.
- PLC Based Ink Transfer System.
- Maintenance Free Ink Distribution System.
REQUEST TECHNICAL QUOTATION
Complete the form below to receive detailed technical documentation and a customized quote for the GD 135 Printer.

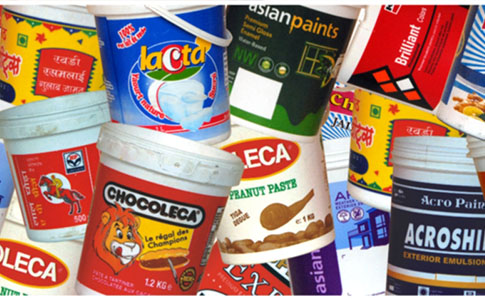

Product Samples
