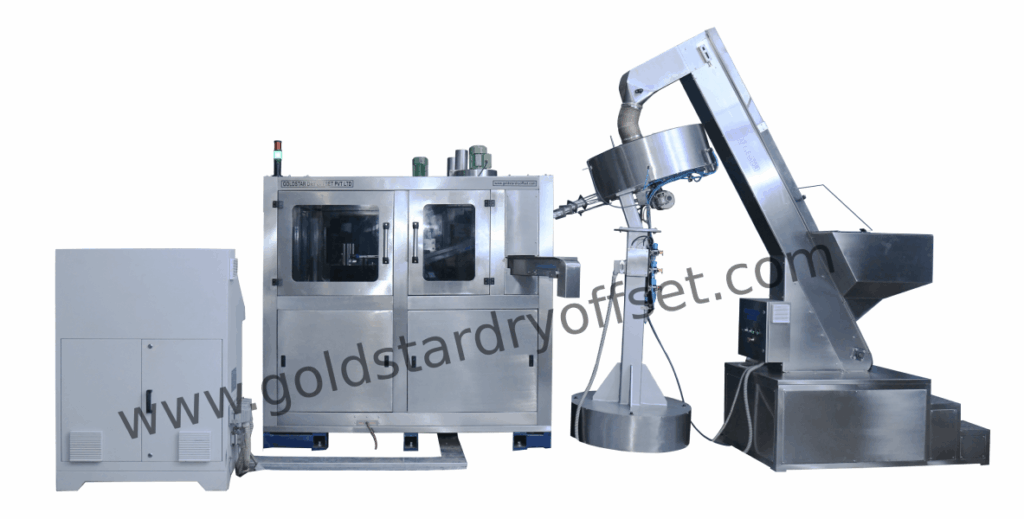

Rotary Cap Printer suitable for Plastic and ROPP (Metal) Caps
Rotary Cap Printer Specifications
| Unit | Value |
|---|---|
| Min. & Max Dia. | 20mm x 60mm |
| Min. & Max. Height | 25mm x 100mm |
| Max Print Area | 190mm (L) x 100mm (H) |
| Electric Motor Drive | Ac Gear motor 5 HP, 3 Phase, 50Hzs. with inverter for fine speed control |
| Pneumatic Pressure | @8-10 kg/cm2 |
| Air Consumption | @12m3/hr |
| Total Power Consumption | 9 kilowatts |
| Max. Impression | @ 6000/hr |
| Total Machine Weight | 5500 kgs |
Rotary Cap Printer Machine Features
Features

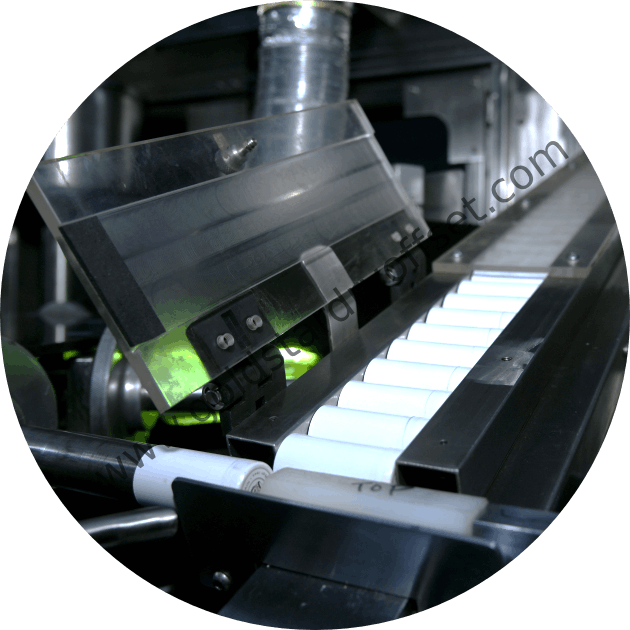

- Auto mechanical loading & unloading of cap on exit conveyor.
- Flame treatment with auto ignition.
- Instantaneous UV drying.
- Online UV varnish unit for overcoat.
- Individual & independent UV control system for printing & varnish.
- Auto orientation of container.
- Individual & independent AC motor with variable AC frequency inverter for variable speed for printing machine & varnish unit.
- Easy to switch over varnish unit if not indeed.
- Anti-backlash plate cylinder gear.
- Micrometer lateral and radial plate cylinder adjustment.
- Positive timing through out machine.

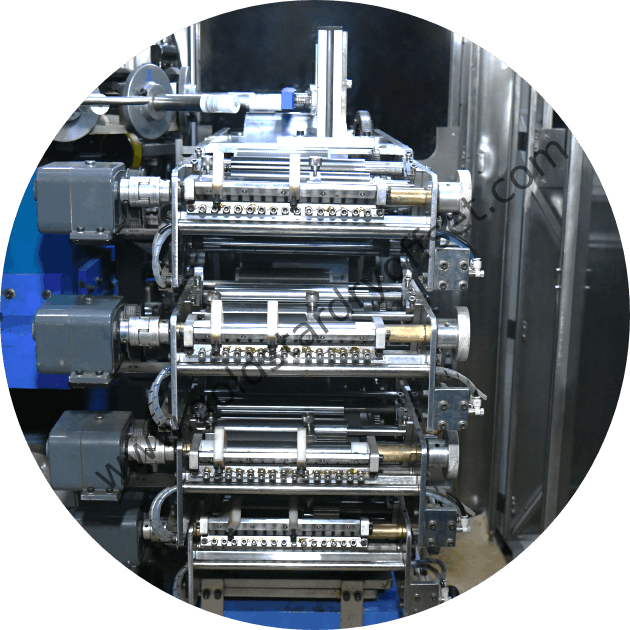

- 4 blanket system with 8 station mechanical indexer.
Optional
- Zeromax Drive for auto ink control.
- Magnetic Cylinder from USA
- Corona System.
- Offline Registration.
- PLC Based Ink Transfer System.
- Maintenance Free Ink Distribution System.
